Automation Maintenance User Guide

An Automation watches for something to happen to records of a specified Entity Type. In this event, based on the criteria of a Trigger, it enrols a record that qualifies, Filters the record (if necessary) and Runs an ordered list of Steps - with a wait between the steps and an optional exit condition to stop the sequence early (i.e. because the candidate has replied).

The terms used throughout this guide are:

• Trigger - The criteria that puts a record into an automation - for example: record created, field changed, stage reached, a date approaching or passed, no contact for a certain number of days, or it being added to a search via a Watchdog.
• Filter - The option to include the criteria of a saved search as additional criteria which the record must also match before it is enrolled.
• Enrolment - A record's journey through an automation. A record can be in several automations at once, but only once per automation. The requirement stage trigger is the exception.
• Step - An action in the sequence, with the option to wait and/or exit if it meets a condition. Steps run in numerical order.
• Exit condition - If met, the rest of the sequence is skipped and the enrolment ends.

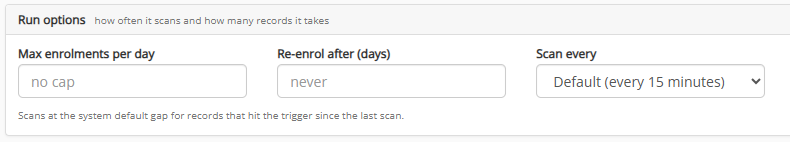

• Scan - The background check that looks for records to enrol. Its frequency is set per automation (i.e. 'Scan every 1 hour').
• Run state
  • Live: records are enrolled and steps are run against live data.
  • Dry Run: records are enrolled and every step is logged as though it would have happened, but nothing is sent or changed.
  • Paused: no new records join the enrolment list of the automation.

• Engine switch - Global Settings > Automation > Enabled. While it is disabled nothing scans, no steps run, the Automations menu entry and the record-level tabs are hidden, and the 'Automation Maintenance' shows an alert with a "Switch the Automation Engine on" button for Users with access to view the page.

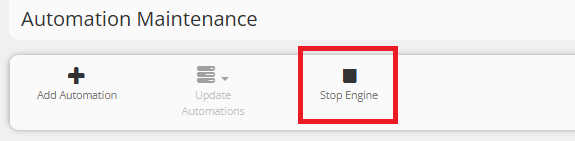

• Stop All on the 'Automation Maintenance' page appears if you are an administrator (Admin flag set to 'Yes' on your User record). This switches off all automations across the system.

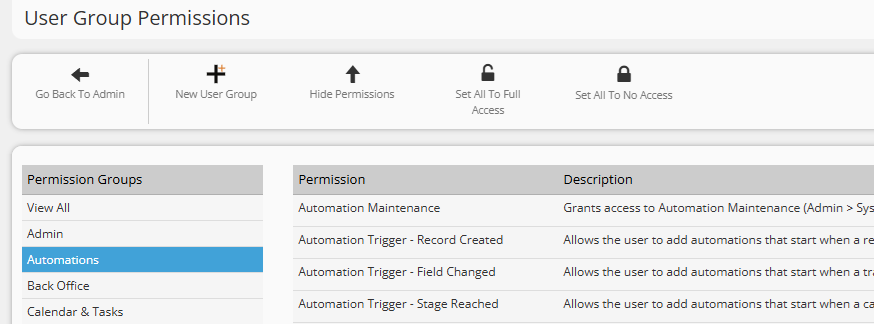

• Permissions - User Group Permissions > Automation Maintenance.
  • 'Full Access' does everything. 'No Access' removes access.

• Menu Option - The left-hand menu entry Automations (above Admin), or Admin > System > Automation Maintenance. Once the engine is on, an Automations tab appears on Candidate, Company, Contact, Requirement and Placement records for every logged-in user.

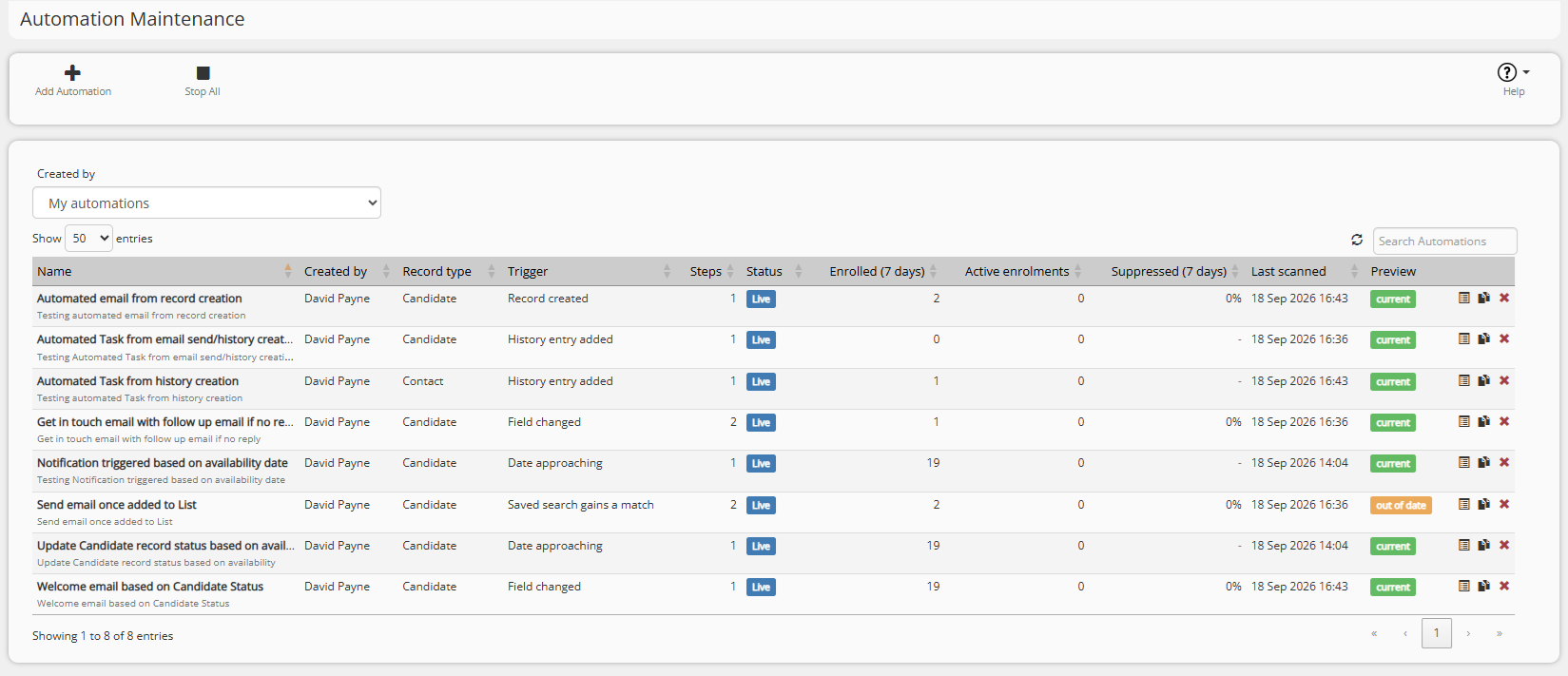

The 'Automation Maintenance' page shows one row per automation.

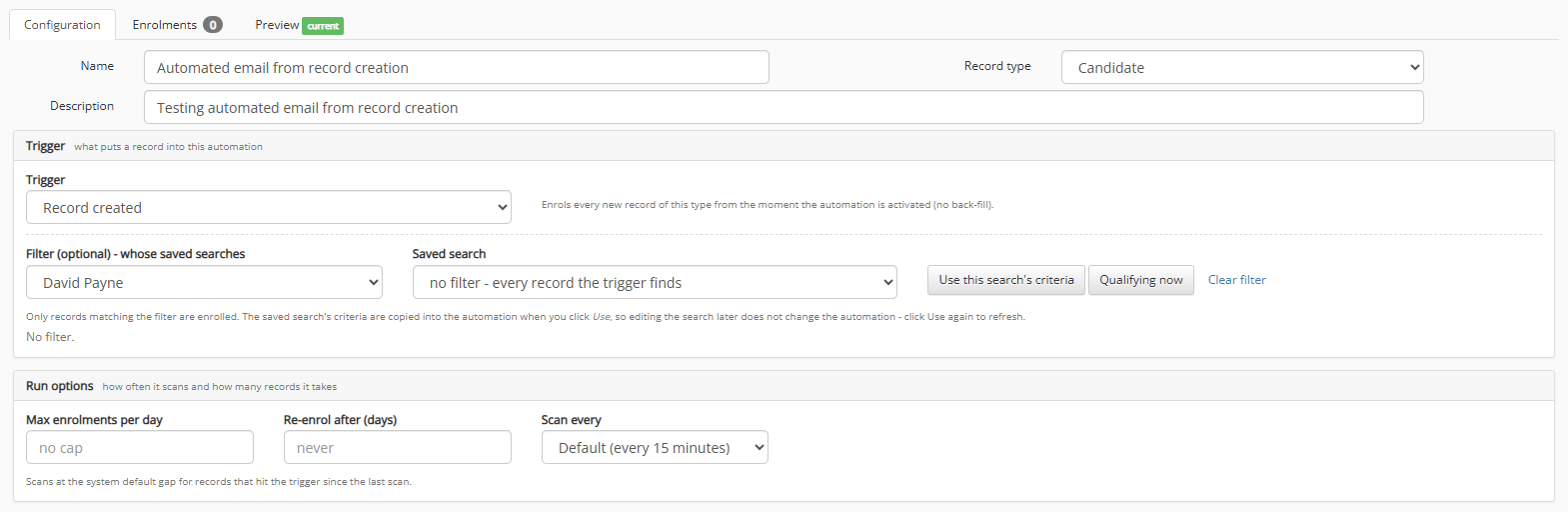

As you are creating or editing an Automation, the editor will have three tabs -

• Configuration
• Enrolments
• Preview

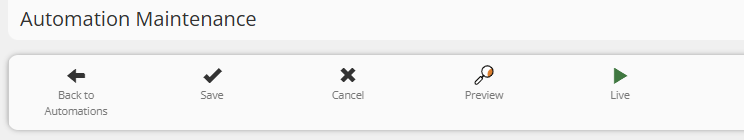

The below options will be available in the toolbar:

If you attempt to leave an Automation without saving, you will be warned that your edits will be lost without saving.

Pausing an automation that has records mid-sequence will prompt a query on what to do with them:

• Leave them to finish
• Pause them so they resume where they left off when you reactivate
• Cancel them

Changing the steps of an active automation that has records mid-sequence also warns you. Those records carry on from their next step using the new list, and a step that no longer exists is skipped to the next one that does.

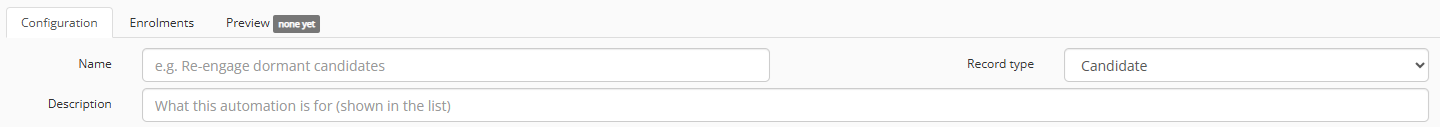

• Name
• Record type
• Description

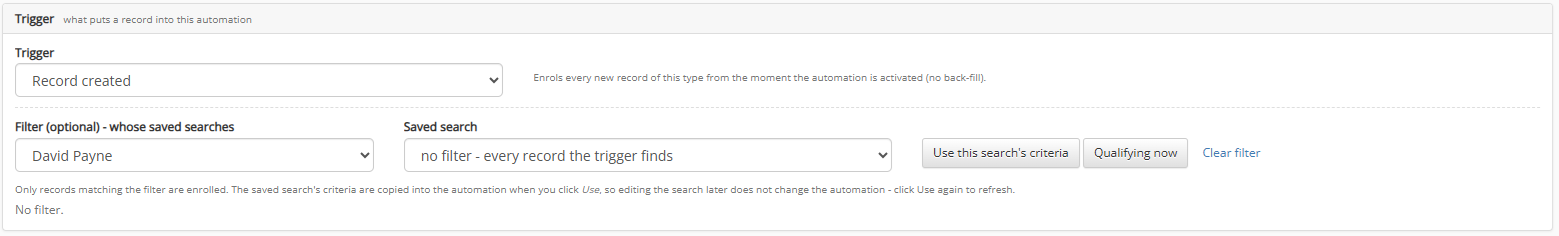

Record created. Every new record of the type from the moment the automation is active. There is no back-fill: records that already existed are never enrolled by this trigger. Use a saved-search trigger or a date trigger for those.

Field changed. Pick any field of the record type, including custom fields. In the event of a Lookup field, specify the value it must change to. Saving will switch on Colleague's 'Track Changes' option for that field (if it was off). Changes made by imports, the API or another automation's field update will also work with this trigger.

Stage reached. What this means will depend on the record type:

• Candidate - The candidate is enrolled when they reach the chosen pipeline stage on any requirement (Longlisted, Shortlisted, CV Sent, Interview, Offered, Placed, Rejected, Removed). The requirement is carried so that requirement merge fields will work with email templates.
• Requirement - The requirement is enrolled each time a candidate reaches the specified stage, one enrolment per candidate, so the same requirement can be in the sequence several times at once. You can specify whether this means all requirements, Requirements that you own (owned by whoever created the automation), or specific requirement IDs (comma separated).
• Offer/Placement - The placement or offer record is enrolled at Offer created, Offer accepted, Offer rejected, Placement made (offer accepted or placed directly), Authorised level 1 or Authorised level 2.

Like Record created, stage triggers watch from activation onwards. There is no back-fill.

Date approaching / Date elapsed. A date field of the record type (standard fields plus the type's custom date fields) and a number of days: within the next N days, or more than N days ago. Re-checked on every scan, so set on a daily schedule by default.

No contact for N days. Records whose 'Last Contacted' date is older than N days, including records never contacted. Contact made means any history entry whose code is configured to update the 'Last Contacted' date field. Candidates, Companies and Contacts only.

Saved search gains a match. Pick a user, then select one of their saved searches. The search must have a watchdog setup against it. The editor will warn if it does not or has expired. Each record the watchdog newly finds is enrolled, on the watchdog's own schedule. The search owner keeps their normal watchdog notification.

Filter (optional). Pick a user, then select one of their saved searches for this record type, and then click "Use this search's criteria". The criteria is copied into the automation at that moment; editing the search later changes nothing until you click Use again. Only records matching the filter are enrolled. "Qualifying now" counts the records that match the filter today, before the trigger and exclusions. "Clear filter" removes it.

The save message for an active automation tells you when the next scan is due.

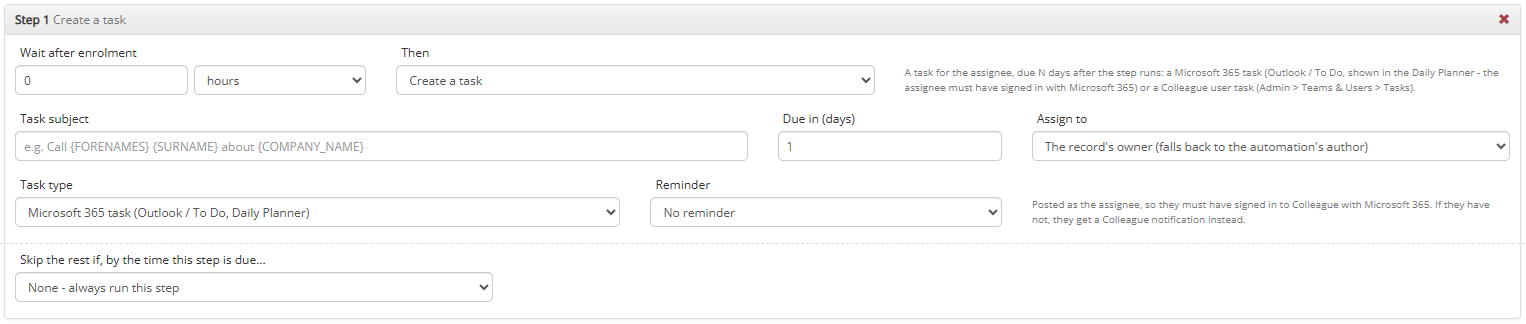

• Wait after enrolment / after step - Specify the amount of hours or days before this step should run. A new step will default to 0, so it runs as soon as the previous step has run, or on enrolment if it is the first step.
• Then - Select an action (listed below).

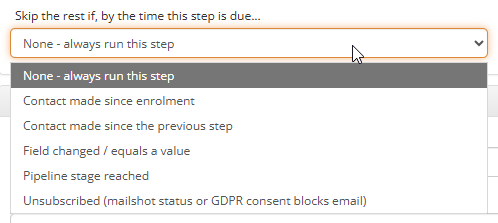

• Skip the rest if, by the time this step is due... - The exit condition.

Merge fields. Within the Step Header, you wll find the option to select a merge field. These merge fields will be based on the chosen entity type. Choose a merge field and then select "Insert merge field". The merge field will be added whereever your cursor is currently placed.

Merge fields will appear as they do on Email and Document Templates (i.e. {FORENAMES}). There are also additional merge fields such as {RECORDLINK} which give a link to the record for internal emails, and summary merge fields such as: {AUTOMATIONNAME}, {ENROLLEDCOUNT}, {RUNDATE} and {AUTOMATIONLINK}.

Email suppression. Before an email or MailChimp step runs, the engine checks the record may be emailed, for there are several steps:

• It needs a valid email address
• Record must not be archived
• Its mailshot status must authorised that it can be sent (Allow All or Email Only)
• GDPR consent must given or be blank. If GDPR consent has been requested and has either been denied or is pending response, it will be supressed.

A blocked record is logged as suppressed, not failed, and the sequence carries on. The following reason codes will be given:

• NO_EMAIL
• ARCHIVED
• MAILSHOT_STATUS
• GDPR_NO_CONSENT
• MAILCHIMP_RULE
• DAILY_CAP - When the system-wide daily email cap has been reached; this step will retry at 08:00 the next day.

Who sends. The automation's author must be an active/licenced user with an email address and have a Microsoft 365 account that has connected to Colleague.

Otherwise the email falls back to the notification address and the step log says why. Internal emails and run summaries always come from the standard Colleague notification address (notifications@colleaguesoftware.com).

Whatever you choose, a record that is archived or deleted always leaves the sequence.

The Enrolments tab is available once the automation has been saved. For a period you select (7, 30 or 90 days, all, or specifc date period) it shows:

• Enrolments in the period - Enrolled, still in the sequence, completed, exited early, failed, cancelled, and how they ended by exit reason.
• Steps run in the period - Executed live, logged in dry run, skipped by exit condition, skipped by suppression, failed, and emails queued, sent and dry run.
• Suppressed by reason.

Every count is a link that filters the enrolment list below it by status, outcome or reason.

The list shows for each record:

• When it was enrolled
• Its current step
• When the next action is due
• Status
• Exit reason
• The trigger reference (the requirement or candidate that triggered it)
• The number of log rows.

From a row you can cancel an active enrolment or retry a failed step.

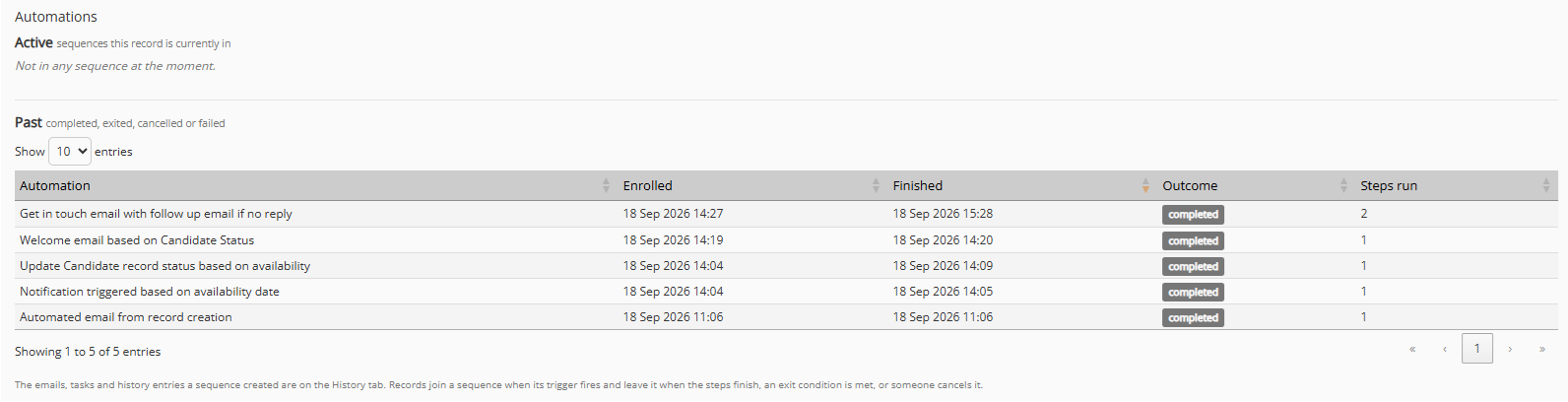

On a Candidate, Company, Contact, Requirement or Placement record, the Automations toolbar option, when pressed, will show the record's historical enrolments past and current, this includes:

• Automation name
• Enrolled
• Current Step
• Next Action
• When it is due

This also includes a cancel link (for full-access users).

Past enrolments will list:

• Automation name
• Enrolled
• Finished
• Outcome
• Steps run.

The 'Automation name' will link to its enrolments in 'Automation Maintenance'.

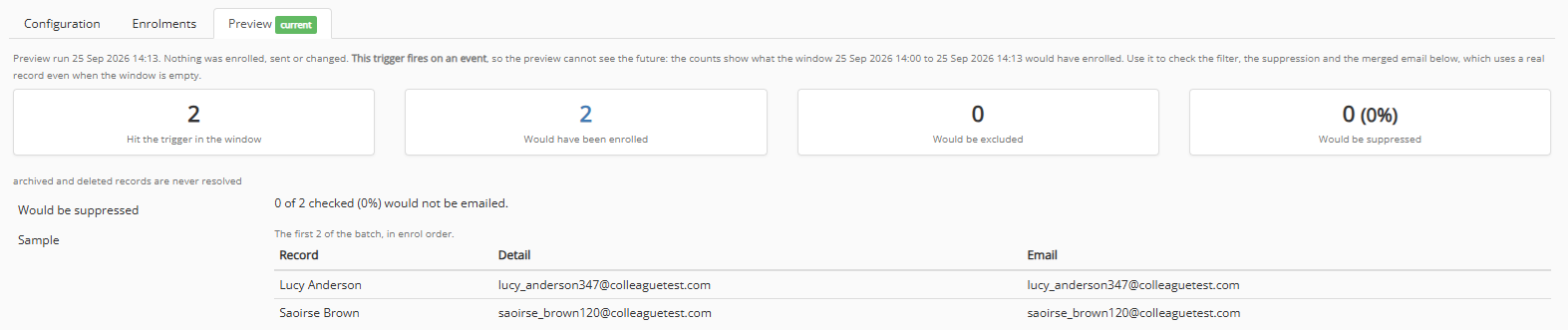

"Preview" saves the automation and then works out, without enrolling, sending or changing anything:

• How many enrol during the next scan
• Who would be excluded and why: already in the sequence, inside the re-enrol window, or over today's cap.
• Who would be suppressed: how many of the batch could not be emailed and the reasons why. Above 50% suggests the criteria filter is probably wrong.
• A sample output of the first 25 records, with links (so you can double check the data).
• An example merged email for the first email step against a real record (or the latest record if nothing hit the trigger), to check the email template and merge fields work as expected.

The Preview badge on the Automation table will show as 'current' while the configuration matches the preview.

It will appear as 'out of date' after any changes that affect who will be enrolled or what happens to them.

Please note: Preview is recommended before going live with an automation. Choosing to go 'Live' without a 'current' preview will require confirmation.

• Scans run in the background based on an automation's 'Scan' settings. The system default scan is 15 minutes.
• Steps are picked up by the background runner approx once a minute, so a step with a 0-hour wait normally runs within a minute or two of becoming due.
• Emails are queued and sent by the standard email worker shortly afterwards. 'Send at hour' holds them until that hour in the author's time zone. The step log's email detail shows each recipient's send status.
• All dates on the automation screens are shown in your local time.

The following settings are held under Global Settings > Automation:

• No back-fill. Record Created, Field Changed, Stage Reached, and Watchdog triggers only process events that occur after the automation is activated. Use Dry Run mode to monitor enrolments without sending any communications.
• Dry Run still enrols records. Records are enrolled into the sequence, and each step is logged to show what would have happened. If you later switch the automation to Live, those enrolled records continue through the sequence from their next scheduled step.
• Field Changed triggers require Track Changes. Track Changes must be enabled for field changes to be detected. This is automatically enabled when you save the automation; any changes made beforehand will not trigger enrolment.
• Date-based and No Contact triggers run once per day. These triggers are evaluated daily at the time you specify.
• Email steps are limited to Candidates and Contacts. Emails can only be sent to record types that have their own email address. For other record types, use an internal email or create a task instead.
• Send As uses the automation author's mailbox. Emails are sent from the automation author's mailbox. If the author does not have a Microsoft 365 connection in Colleague, the email is sent from the system notification address instead, and this is recorded in the step log.
• Automation-linked templates cannot be deleted: Any template currently used by an automation step cannot be removed from Template Maintenance.
• Copy and Delete behaviour:
  • Copy creates a paused Dry Run version of the automation, including all steps.
  • Delete prompts you to choose how records currently moving through the sequence should be handled.
• Watchdog searches use their own schedule. Records are enrolled when the Watchdog search runs, according to the Watchdog schedule, rather than the automation schedule.
• Missing dependencies are clearly identified. If a referenced list, template, or custom field has been renamed or removed, it will appear as "(not in the list)" within the editor so that any issues can be easily identified and corrected.
